    ISO14443A HF RFID Module-SL025B

    Ask Lasest Price
    Brand Name : L-Link
    Model Number : SL-025B
    Certification : CE/ Rohs
    • Product Details
    • Company Profile

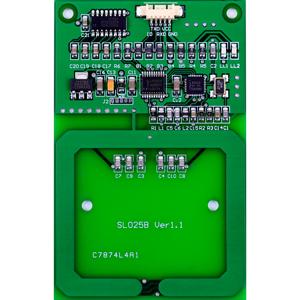

    ISO14443A HF RFID Module-SL025B

    Being developed based on NXP's transponder IC, HF RFID Module SL025B is a MIFARE OEM reader/writer. It supports MIFARE™ Classic 1K, MIFARE™ Classic 4K, MIFARE Ultralight™ and is applicable for 13.56MHz. This embedded module does auto Real-time detecting tag which moves into or out of detective range and reports through one output pin's logic level. In addition, it integrates all necessary components and antenna into one PCB. The external Micro-controller can work with SL025B to read/write MIFARE cards by simple serial communication commands.


    ModelMIFARE Module SL025B
    Frequency13.56MHz
    ProtocolISO14443A
    Tag supportedUltralight, NTAG203, MIFARE Mini, MIFARE™ Classic 1K, MIFARE™ Classic 4K, FM11RF08
    InterfaceRS232
    Supply voltage4.4 - 12.0 VDC
    Dimension86 × 55 mm
